GP Link 1.5
GP Link 1.5
Produktbeskrivning
Function
The patented joint and the element’s mass is 2750 kg for 6-meter. The 3-meter is 1 500 and the 1-meter 490 kg.
It allows for the unique ability to smoothly catch up impacting vehicle.
Concrete Quality
Concrete C35 / 45 SKB VCT 0.40
Stone Size 8-16
Exposure class XC4 XS3 XD3 XF4 XA3
Air according frost test 4.8%
Profiled distribution hagers 8 mm
Reinforcement Quality B500BT
Cover layer 45 mm
life
L1 = 50 år
Base width Width Height Weight

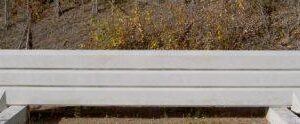

6 meters; 240 mm, 450 mm, 870 mm, 2750 kg
3 meters; 240 mm, 450 mm, 870 mm, 1500 kg
1 meters; 240 mm, 450 mm, 870 mm, 450 kg
Start/endsection; 6 meter; 240 mm, 450 mm, 870 mm, 1500 kg
Start/ensection 3 meters; 240 mm, 450 mm, 870 mm, 950 kg
GPLINK 6 meter radius 30 m
GPLINK 3 meter radius 10 m
GPLINK 3m W6 1.9 m
96 meters is the basis for approval of containment class N2.In addition to the above full-scale tests, we have simulated crash tests
as shown below
The conditions in all tests is 42 meters GPLINK
1500 kg car, the 20-degree impact angle, speed 50 km / h
GPLINK 3 m 0.97 m (W3)
GPLINK 6 m 0.61 m (W1)10 ton truck, 8-degree impact angle, speed 70 km / h
GPLINK 3 m 1.93 m (W6)
GPLINK 6 m 1.35 m (W5)
Transport
GPLINK delivered to the workplace in open truck or covered cabinets. assembly
takes place with a crane provided with lifting tools intended for GPLINK.
Assembling
* The joint is gray or red, low and high
* When mounting the first element splice gray (low) and the elements to be linked
to have red (high) joint.
* Together with locking pin of steel.
* GPLINK mounted directly onto the paved roadway without interference with the substrate.
* A uppmarkerad center line shall be provided to indicate start of installations, the center barrier and fitting end.
* The installation should be performed by trained installation team.
Accessories;
Reflexes
Lighting Post – special elements with achorings for the post base.
Advice and Instruction
* Installation team must have completed the course ”Certified installer” (SVBRF)
* Liftiong tool used to lift GPLINK
