Easy Rail
Easy Rail
EasyRail is easy, simple is handed design consisting of railing profile, posts and connect the components.
EasyRail system offers good opportunity to obtain the desired working from N2W2 to N2W5.
The distance between the posts, and thus the work area vary between 1,33m (W2) and 6.00m (W5).
It gives a railing system that constantly adapted to the real needs of independent working width and therefore greatly reduce the installation cost.
Produktbeskrivning

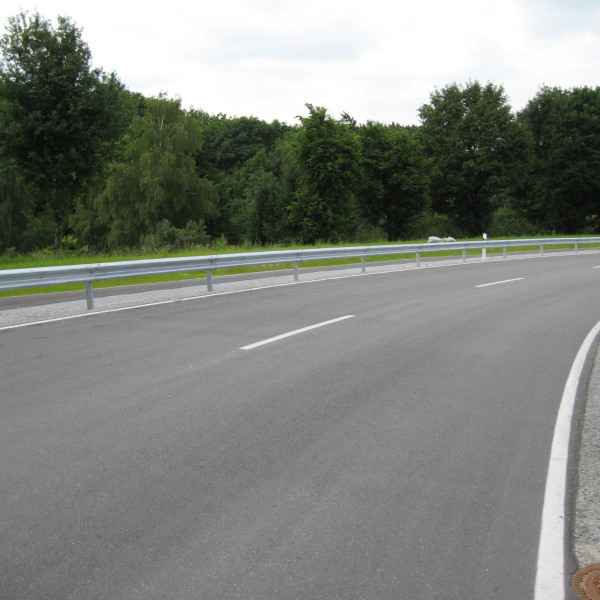

The EasyRail family is easy to mount due to consisting of a post, a guardrail beam and a support bracket. EasyRail system offers a good opportunity to obtain the desired working width from W2 to W5 in N2 containment level and W3 to W4 in H1 containment level. The distance between the posts and thus the working width of the guardrail vary between 1,33m (W2) and 6.00m (W5). It gives a guardrail system that constantly adapted to the real needs of independent working width and therefore greatly reduce the installation cost.
| Module | EASYRAIL 6.0 | EASYRAIL 4.0 | EASYRAIL 2.0 | EASYRAIL 1.33 | |
 |
|||||
| Post Distance | 6.0 m | 4.0 m | 2.0 m | 1.33 m | |
| Containment Level | N2 | N2 | N2 / H1 / L1 | N2 / H1 / L1 | |
| Working Width | W5 | W4 | W3 / W4 | W2 / W3 | |
| Impact Severity | A | A | A | A | |
| Weight / m (A/B) | 13.6 / 16.6 kg/m | 15.7 / 14.7 kg/m | 19.9 / 18.9 kg/m | 24.6 / 23.6 kg/m | |
| System Height | 750 mm | 750 mm | 750 mm | 750 mm | |
| System Width (A/B) | 215 / 205 mm | 215 / 205 mm | 215 / 205 mm | 215 / 205 mm | |
| Number of Posts | 0.66 posts / 4 m | 1 posts / 4 m | 2 posts / 4 m | 3 posts / 4 m | |
